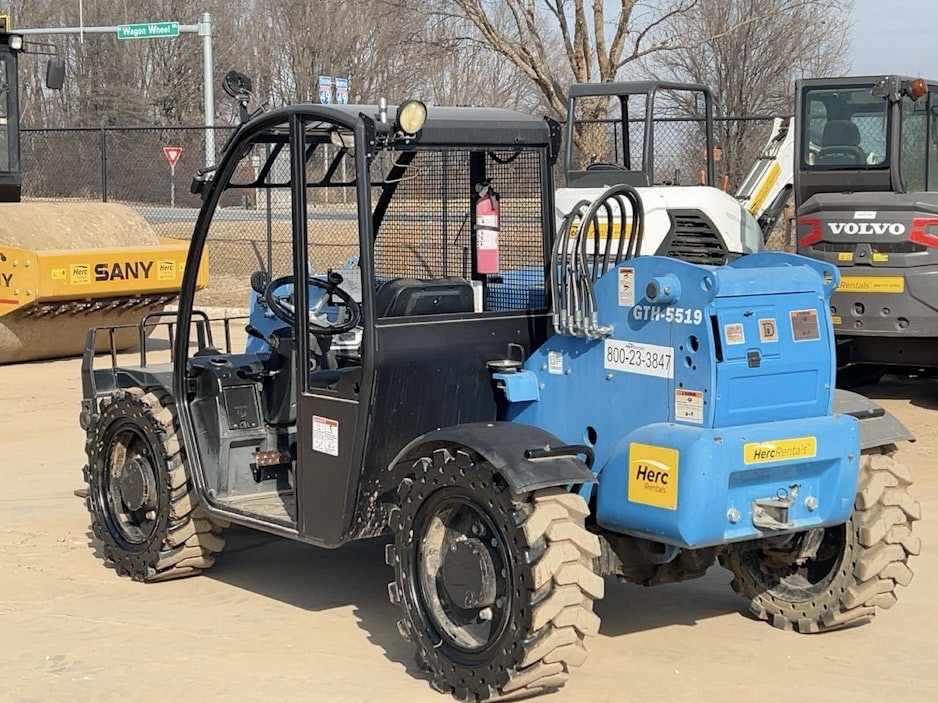

Genie GTH 5519

Genie 5519 Telehandlers for sale. New and Used. Above All Equipment prides itself in carrying new along with contractor owned Genie GTH5519's. Genie 5519 Used Telehandlers are easy to maneuver and convenient to service, with a variety of rugged attachments, Genie® compact telehandlers meet the needs of most construction, masonry, landscape and farming applications.

Overview

COMFORTABLE, SPACIOUS CAB WITH TILT STEERING AND ERGONOMIC CONTROLS

EASY-TO-USE, MULTIFUNCTION JOYSTICK CONTROL FOR PRECISE POSITIONING

ROPS/FOPS CANOPY (ISO COMPLIANT), RETRACTABLE SEAT BELT AND ILLUMINATED GAUGE AND SWITCH PANELS

FULL-TIME PLANETARY FOUR-WHEEL DRIVE AND FOUR-WHEEL STEER

PROPORTIONAL, REVERSIBLE, CONTINUOUS AUXILIARY HYDRAULIC FLOW

VARIABLE-SPEED HYDROSTATIC DRIVE

POWER-ASSISTED STEERING

MANUAL GENIE QUICK-ATTACH™ SYSTEM FOR ATTACHMENTS

TWO DIESEL ENGINE OPTIONS AVAILABLE

Specifications

MAXIMUM LIFT HEIGHT

19 ft (5.79 m)

MAXIMUM FORWARD REACH

11 ft (3.35 m)

MAXIMUM LIFT CAPACITY

5,500 lbs (2,500 kg)

POWER SOURCE

Perkins 804D-33 4 cylinder diesel 63 hp (47.0 kW)
Deutz D 2011 4 cylinder diesel 68 hp (50.0 kW)

TRAVEL SPEED

15 mph (24.1 km/h)

WEIGHT*

9,800 lbs (4,450 kg)

Above All Equipment specializes in finding the right used Genie 5519 for your job, and budget. Our goal is to save you two things, time and money! We work with manufacture holding yards, “big box” rental houses, private owners/contractors, and “mom and pop” rental stores. We specialize in preowned units 2006-2015. Don’t hesitate to call for a quote on one of these great little machines!



page1image1525659904

COMPACT ROUGH TERRAIN TELEHANDLER

Genie GTH 55-19

GTHTM-5519

Specifications

MODEL

MEASUREMENTS

Maximum lift height Reach
Reach at maximum height

  1. A  Height, stowed
  2. B  Length, stowed (without forks)

Width

C Wheelbase

  1. D  Ground clearance, center
  2. E  Ground clearance, axle

Fork cross section

PRODUCTIVITY

Maximum lift capacity
Lift capacity at maximum height Lift capacity at maximum reach Drive speed
Draw bar pull
Break out force
Turning radius, outside (4WS) Auxiliary hydraulic flow Auxiliary hydraulic pressure Tires, standard size

POWER

Power source Electrical system

Hydraulic tank capacity
Hydraulic system capacity (w/tank) Fuel tank capacity

WEIGHT

Weight*

STANDARDS COMPLIANCE

GTHTM-5519

US

19 ft
11 ft
1 ft 10 in 6 ft 4 in 12 ft 7 in 5 ft 11 in 7 ft 7 in 1 ft 1 in 10 in
1.6 x 4 in

5,500 lbs 4,400 lbs 1,900 lbs 15 mph 9,300 lbs 8,100 lbs 11 ft 18.5 gpm 3,918 psi 12 x 16.5

Metric

5.79 m 3.35 m 0.56 m 1.93 m 3.84 m 1.80 m 2.32 m 0.33 m 0.25 m
40 x 100 mm

2,500 kg 1,995 kg 862 kg 24.1 km/h 4,225 kg 3,674 kg 3.35 m

70 lpm

270 bar in, 10 ply

A

DE C

B
LOAD CHART GTHTM-5519**

20 ft

6.1 m

15 ft

4.57 m

10 ft

3.05 m

70 ̊ 60 ̊

40 ̊

50 ̊

1,900 lbs/862 kg
2,000 lbs/907 kg

3,000 lbs/1,361 kg 4,400 lbs/1,995 kg

* Weight will vary depending on options and/or country standards. ** Load ratings vary depending on attachment.

www.genieindustries.com

Perkins 804D-33 4 cylinder diesel 63 hp (47.0 kW) Deutz D 2011 4 cylinder diesel 68 hp (50.0 kW)

System voltage 12 volt Alternator 95 amp
Battery 720 CCA at 0°F (-18°C)

1.52 m

0 ft

0m

-5 ft

10 ̊

0 ̊ -3 ̊

16.4 gal 25 gal 15.9 gal

9,800 lbs
ASME B 56.6, ISO 3471, ISO 3449

Distributed By: One Source Equipment Rentals

www.onesourcerental.com

62 L 95 L 60 L

1.52 m
4.57m 3.05m 1.52m 0m -1.52m

4,450 kg

20 ̊ 5 ft

30 ̊

15ft 10ft 5ft 0ft -5ft

5,500 lbs/2,500 kg

COMPACT ROUGH TERRAIN TELEHANDLER

page2image1324117904

GTHTM-5519

page2image1324199328

Features

STANDARD FEATURES

MEASUREMENTS

• 5,500 lb (2,500 kg) maximum lift capacity • 19 ft (5.79 m) maximum lift height
• 11 ft (3.35 m) maximum reach

PRODUCTIVITY

  • Full time planetary 4-wheel drive
  • 4WS
  • Operator selectable front, crab,coordinated steering modes
  • Auxiliary hydraulic circuit
  • Proportional, reversible, continuousauxilliary hydraulic flow control
  • Genie manual Quick-AttachTM system
  • Power assisted steering
  • Variable speed hydrostatic drive
  • Limited slip front axle differential
  • Inboard wet disc service brakes
  • Wet disc spring applied parking brake
  • 12 x 16.5 in, air-filled rough terrain tires
  • Fenders (set of 4)
  • ROPS/FOPS canopy (ISO compliant)
  • Single multi-function proportionaljoystick
  • Tilt steering column
  • Illuminated gauge and switch panels
  • Retractable seat belt
  • Machine level indicator
  • Right-side screen guard
  • 48 inch carriage and pallet forks
  • Boom angle indicator
  • Reverse motion alarmPOWER

    • Perkins 63 hp (47 kW) Tier III diesel engine • Deutz 68 hp (50 kW) Tier III diesel engine

    Genie United States

    18340 NE 76th Street
    P.O. Box 97030
    Redmond, Washington 98073-9730

    Telephone +1 (425) 881-1800
    Toll Free in USA/Canada +1 (800)-536-1800 Fax +1 (425) 883-3475

OPTIONS & ACCESSORIES

PRODUCTIVITY

• Enclosed cab, includes split door, emergency exit, clip-in glass inserts, front wiper and tank, cab heater

• Cab air conditioner
• Adjustable suspension seat • 3 in retractable seat belt
• Flashing beacon
• Work lights
• Road lights
• Exhaust scrubber

ATTACHING SYSTEM OPTIONS

• Universal skid steer adapter
• Auxilliary hydraulic back pressure

lock valve

ATTACHMENT OPTIONS

• Carriages
- 48 in (1.22 m) side shift carriage, +/- 4 in (10 cm)
- 48 in (1.22 m) rotating fork carriage, +/- 14°

• Forks (in addition to standard 48 in pallet forks)
- 60 in (1.52 m) forks
- 48 in (1.22 m) forks (ITA type) - Cubing tines, 2 x 2 x 48 in

(.05 x .05 x 1.22 m) • Buckets

  • -  66 in bucket with bolt-on cutting edge, .50/.65 yd3 struck/heaped
  • -  60 in bucket with bolt-on cutting edge, .65/.75 yd3 struck/heaped

page2image1727110672

- 78 in, .68 yd3 scrap grapple bucket • 6 ft truss boom

TIRE OPTIONS

  • 12 x 16.5 in, semi-pneumatic rough terrain tires
  • 12 x 16.5 in, foam-filled tires
