Telehandler Specs

Telehandler Technical Library

CLICK ANY MODEL TO VIEW FULL SPECIFICATIONS

9 Models Available

Expand All Details

Make & Model
Lift Capacity
Lift Height
Reach
Weight

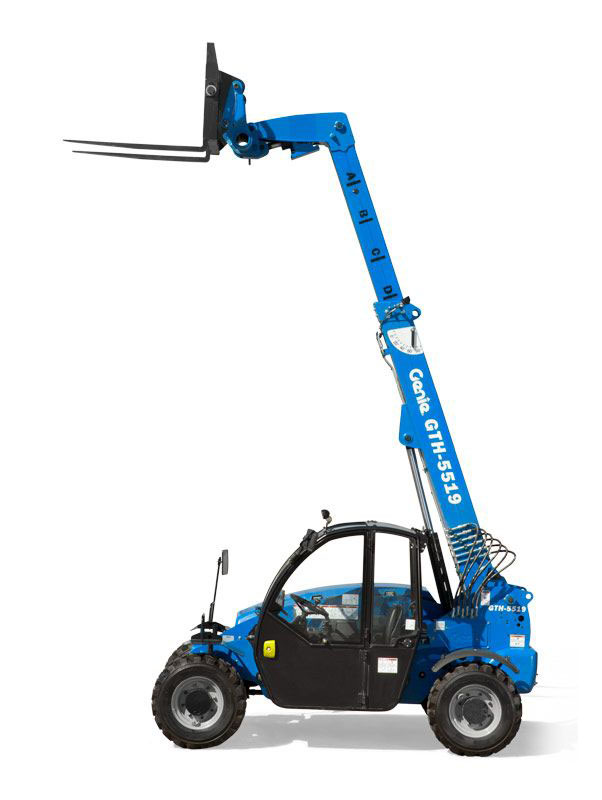

Genie GTH-5519

Make & Model
Genie GTH-5519
Lift Capacity
5,500 lbs
Lift Height
19 ft
Reach
11 ft
Weight
4,400 lbs

DESCRIPTION

The Genie® GTH™-5519 compact telehandler is the perfect choice for tasks both large and small. Easy to maneuver and transport, and convenient to service, it meets the needs of most construction, masonry, landscape and agricultural applications.

Dimensions

Length (stowed):
12 ft 2 in
Width:
5 ft 11 in
Height:
6 ft 4 in
Wheelbase:
8 ft 6 in
Ground Clearance:
1 ft 2 in

Performance

Turning Radius:
11 ft
Drawbar Pull:
10,250 lbs
Drive Speed:
16 mph
Engine:
Deutz 74hp
Fuel Tank:
15.9 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

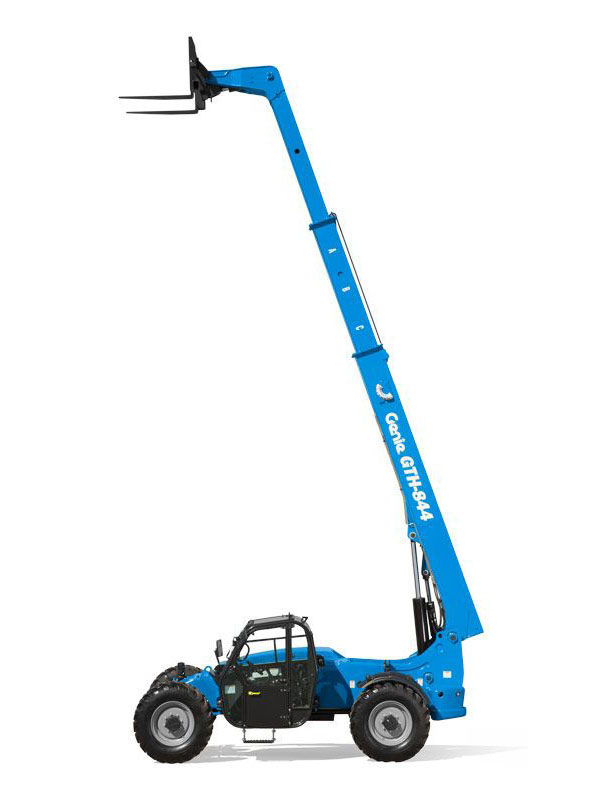

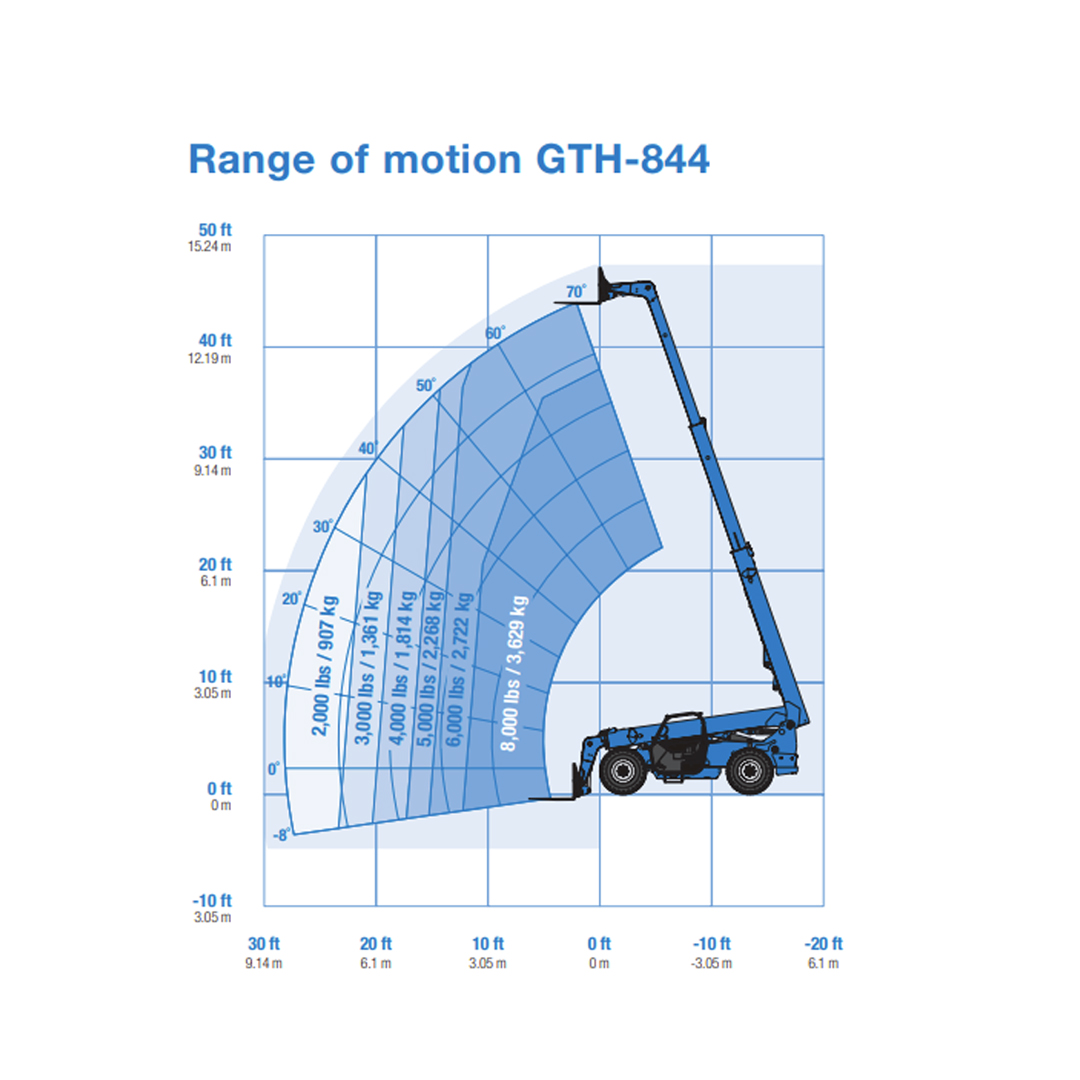

Genie GTH-844

Make & Model
Genie GTH-844
Lift Capacity
8,000 lbs
Lift Height
44 ft
Reach
28 ft
Weight
6,000 lbs

DESCRIPTION

The Genie® GTH™-844 telehandler offers excellent lift capacity, making it an ideal machine for loading/unloading and moving/placing materials, as well as cleanup, on a variety of jobsites. Choose from an industry-leading 74-hp Tier 4 final Deutz 3.6L engine.

Dimensions

Length (stowed):
20 ft 3 in
Width:
8 ft 1.5 in
Height:
7 ft 10 in
Wheelbase:
11 ft 4 in
Ground Clearance:
1 ft 3 in

Performance

Turning Radius:
13 ft 9 in
Drawbar Pull:
21,000 lb
Drive Speed:
15 mph
Engine:
Deutz TCD 3.6
Fuel Tank:
32 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

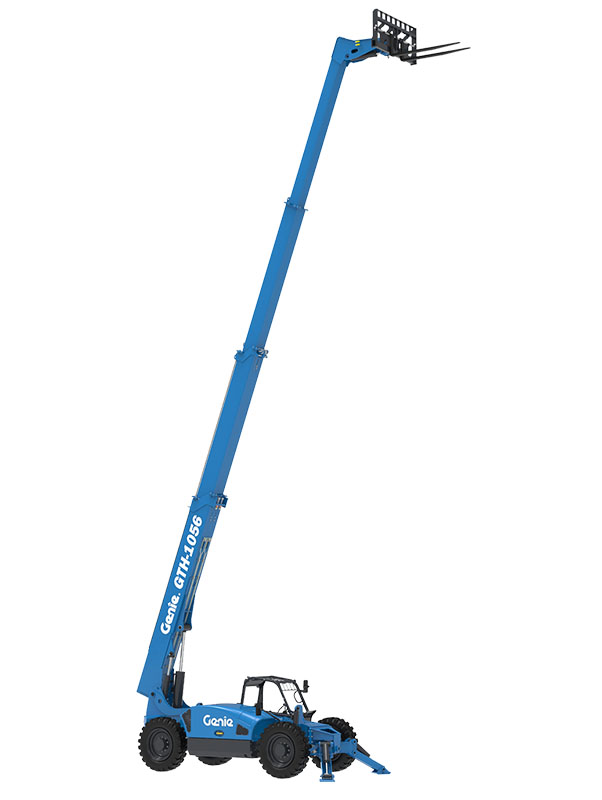

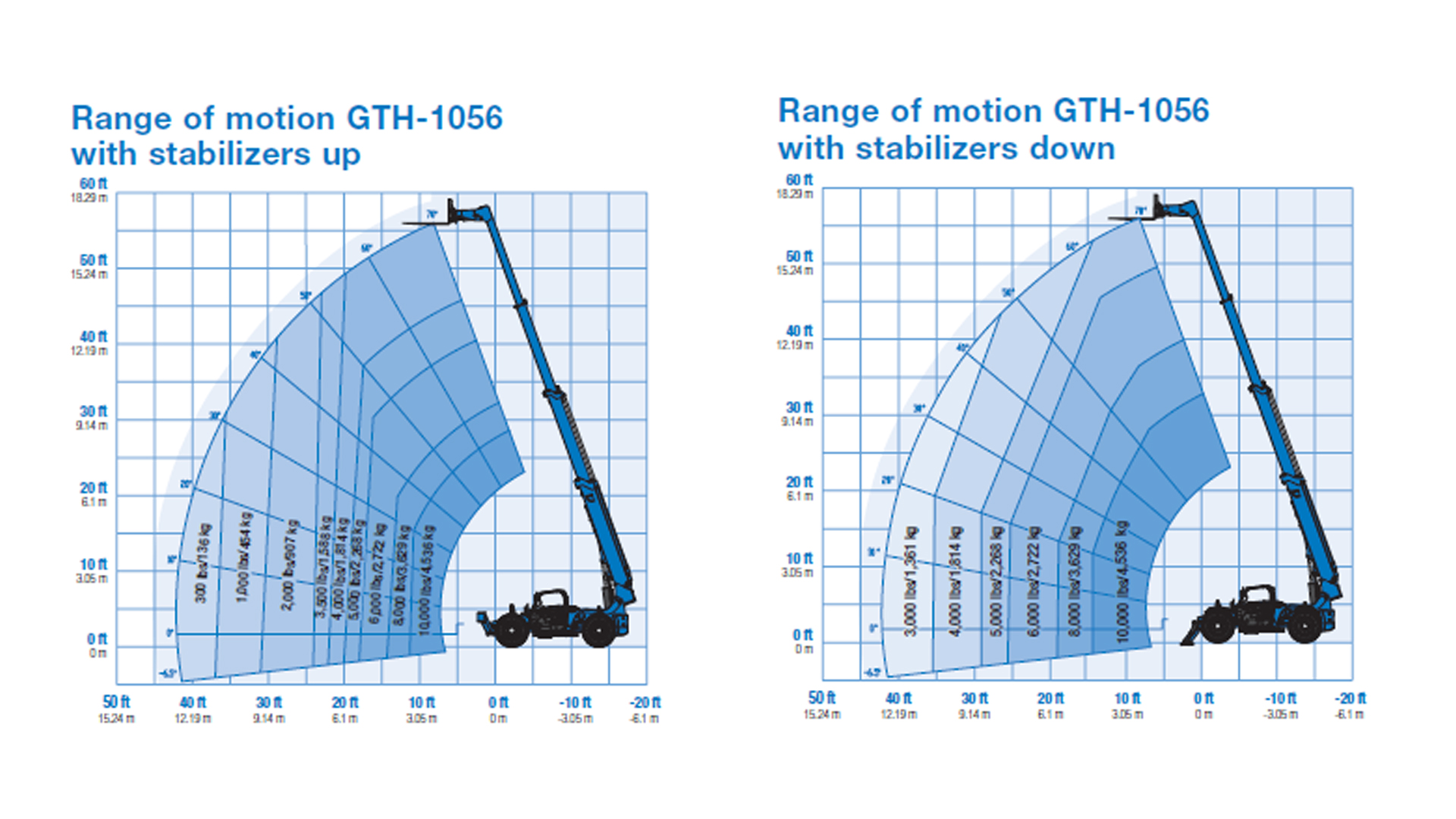

Genie GTH-1056

Make & Model
Genie GTH-1056
Lift Capacity
10,000 lbs
Lift Height
57 ft
Reach
42 ft
Weight
4,000 lbs

DESCRIPTION

The Genie® GTH™-1056 telehandler offers excellent lift capacity and a maximum forward reach 42 ft (12.8 m) to move heavy loads over obstacles. Powerful four-wheel drive and turbocharged diesel engine to handle even the toughest worksite conditions.

Dimensions

Length (stowed):
22 ft 6 in
Width:
8 ft 6 in
Height:
8 ft 6 in
Wheelbase:
11 ft 6 in
Ground Clearance:
1 ft 3 in

Performance

Turning Radius:
14 ft
Drawbar Pull:
23,000 lb (74hp PS)
25,000 lb (121hp PS)
Drive Speed:
15 mph (74hp PS)
18 mpb (121hp PS)
Engine:
Deutz TCD 3.6
Fuel Tank:
30 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

JLG-518

Make & Model
JLG-518
Lift Capacity
5,500 lbs
Lift Height
18 ft
Reach
11 ft
Weight
10,360 lbs

DESCRIPTION

The new 519 Telehandler features a fuel-efficient Tier 4 final Deutz engine and offers a tight turning radius making it easier to maneuver through crowded job sites.

Dimensions

Length (stowed):
12 ft 8 in
Width:
6 ft 0 in
Height:
6 ft 4 in
Wheelbase:
92.5 in
Ground Clearance:
10.8 in

Performance

Turning Radius:
126 in
Drawbar Pull:
10,300 lb
Drive Speed:
15 mph
Engine:
Deutz TD2.2 L3
Fuel Tank:
18.5 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

JLG-943

Make & Model
JLG-943
Lift Capacity
9,000 lbs
Lift Height
43 ft
Reach
30 ft 5 in
Weight
24,912 lbs

DESCRIPTION

Engineered for enhanced operator comfort with a spacious cab, intuitive single joystick, and integrated armrest, the JLG 943 offers increased operator confidence thanks to greater visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system, and reversing camera.

Dimensions

Length (stowed):
19 ft 9 in
Width:
8 ft 1 in
Height:
8 ft 2 in
Wheelbase:
135 in
Ground Clearance:
17 in

Performance

Turning Radius:
12 ft
Drawbar Pull:
22,751 lb
Drive Speed:
19 mph
Engine:
Cummins F3.8L
Fuel Tank:
38.3 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

JLG-1055

Make & Model
JLG-1055
Lift Capacity
10,000 lbs
Lift Height
55 ft
Reach
42 ft
Weight
31,559 lbs

DESCRIPTION

Engineered for enhanced operator comfort with a spacious cab, intuitive single joystick, and integrated armrest, the JLG 1055 offers increased operator confidence thanks to greater visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system, and reversing camera.

Dimensions

Length (stowed):
20 ft
Width:
8 ft 4 in
Height:
8 ft 4 in
Wheelbase:
137.5 in
Ground Clearance:
18 in

Performance

Turning Radius:
14 ft
Drawbar Pull:
25,400 lb
Drive Speed:
20 mph
Engine:
Cummins F3.8L
Fuel Tank:
38.3 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

JCB-520

Make & Model
JCB-520
Lift Capacity
10,000 lbs
Lift Height
55 ft
Reach
42 ft
Weight
31,559 lbs

DESCRIPTION

The JCB 520-40 is another compact, manoeuvrable Loadall. It has a longer footprint than the 516-40, giving it greater lifting capacity and lift capacity at reach.

The JCB 520-40 Loadall has a spacious, safe, side-entry cab with superb visibility is superb and a large opening door allows for easy access.  Investment in the compact telescopic handler operator’s comfort is imperative because it equates to real, measurable improvements in day-long productivity.

Dimensions

Length (stowed):
20 ft
Width:
8 ft 4 in
Height:
8 ft 4 in
Wheelbase:
137.5 in
Ground Clearance:
18 in

Performance

Turning Radius:
14 ft
Drawbar Pull:
25,400 lb
Drive Speed:
20 mph
Engine:
Cummins F3.8L
Fuel Tank:
38.3 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

JCB-550

Make & Model
JCB-550
Lift Capacity
10,000 lbs
Lift Height
55 ft
Reach
42 ft
Weight
31,559 lbs

DESCRIPTION

The JCB 520-40 is another compact, manoeuvrable Loadall. It has a longer footprint than the 516-40, giving it greater lifting capacity and lift capacity at reach.

The JCB 520-40 Loadall has a spacious, safe, side-entry cab with superb visibility is superb and a large opening door allows for easy access.  Investment in the compact telescopic handler operator’s comfort is imperative because it equates to real, measurable improvements in day-long productivity.

Dimensions

Length (stowed):
20 ft
Width:
8 ft 4 in
Height:
8 ft 4 in
Wheelbase:
137.5 in
Ground Clearance:
18 in

Performance

Turning Radius:
14 ft
Drawbar Pull:
25,400 lb
Drive Speed:
20 mph
Engine:
Cummins F3.8L
Fuel Tank:
38.3 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote

JCB-1056

Make & Model
JCB-1056
Lift Capacity
10,000 lbs
Lift Height
55 ft
Reach
42 ft
Weight
31,559 lbs

DESCRIPTION

The JCB 520-40 is another compact, manoeuvrable Loadall. It has a longer footprint than the 516-40, giving it greater lifting capacity and lift capacity at reach.

The JCB 520-40 Loadall has a spacious, safe, side-entry cab with superb visibility is superb and a large opening door allows for easy access.  Investment in the compact telescopic handler operator’s comfort is imperative because it equates to real, measurable improvements in day-long productivity.

Dimensions

Length (stowed):
20 ft
Width:
8 ft 4 in
Height:
8 ft 4 in
Wheelbase:
137.5 in
Ground Clearance:
18 in

Performance

Turning Radius:
14 ft
Drawbar Pull:
25,400 lb
Drive Speed:
20 mph
Engine:
Cummins F3.8L
Fuel Tank:
38.3 gal

Downloads & Resources

Spec Sheet Operator Manual Load Chart
Check Inventory Get a Quote
