Scissor Lift Specs
By Genie
Genie GS-1530
Maneuver easily in tight spaces with the Genie® GS™-1530 slab scissor lift. Boasting zero-emission electric operation and low noise levels, this unit excels in indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.
| Max Working Height | 21 ft |
| Capacity | 600 lb |
| Machine Width | 2 ft 6 in |
| Machine Length | 6 ft |
| Weight | 2,575 lb |
Genie GS-1930
The Genie® GS™-1930 slab scissor lift is easy to maneuver in tight spaces, has a 25-ft working height, boasts quiet electric, zero-emissions operation and is ideal for indoor and outdoor applications on firm, level surfaces.
| Max Working Height | 25 ft |
| Capacity | 800 lb |
| Machine Width | 2 ft 8 in |
| Machine Length | 8 ft |
| Weight | 3,574 lb |

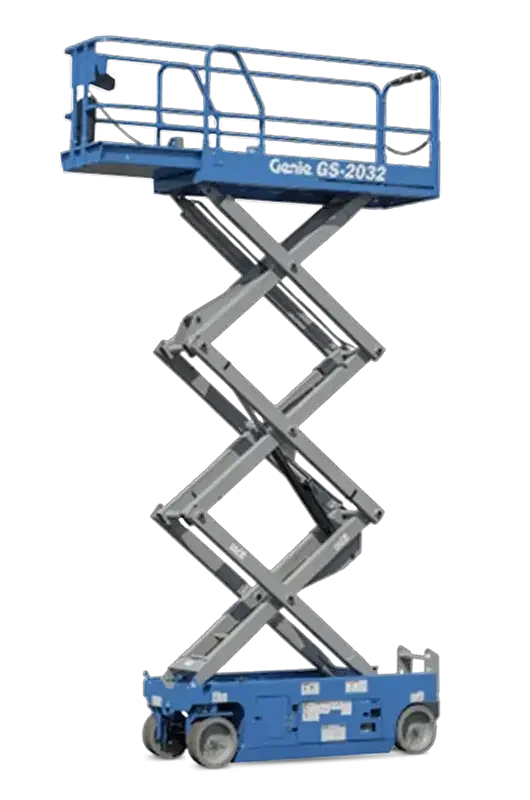

Genie GS-2032
With proportional controls for lift and drive functions, the Genie® GS™-2032 slab scissor lift boasts the versatility to work in indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.
| Max Working Height | 25 ft 11 in |
| Capacity | 800 lb |
| Machine Width | 2 ft 8 in |
| Machine Length | 8 ft |
| Weight | 3,574 lb |

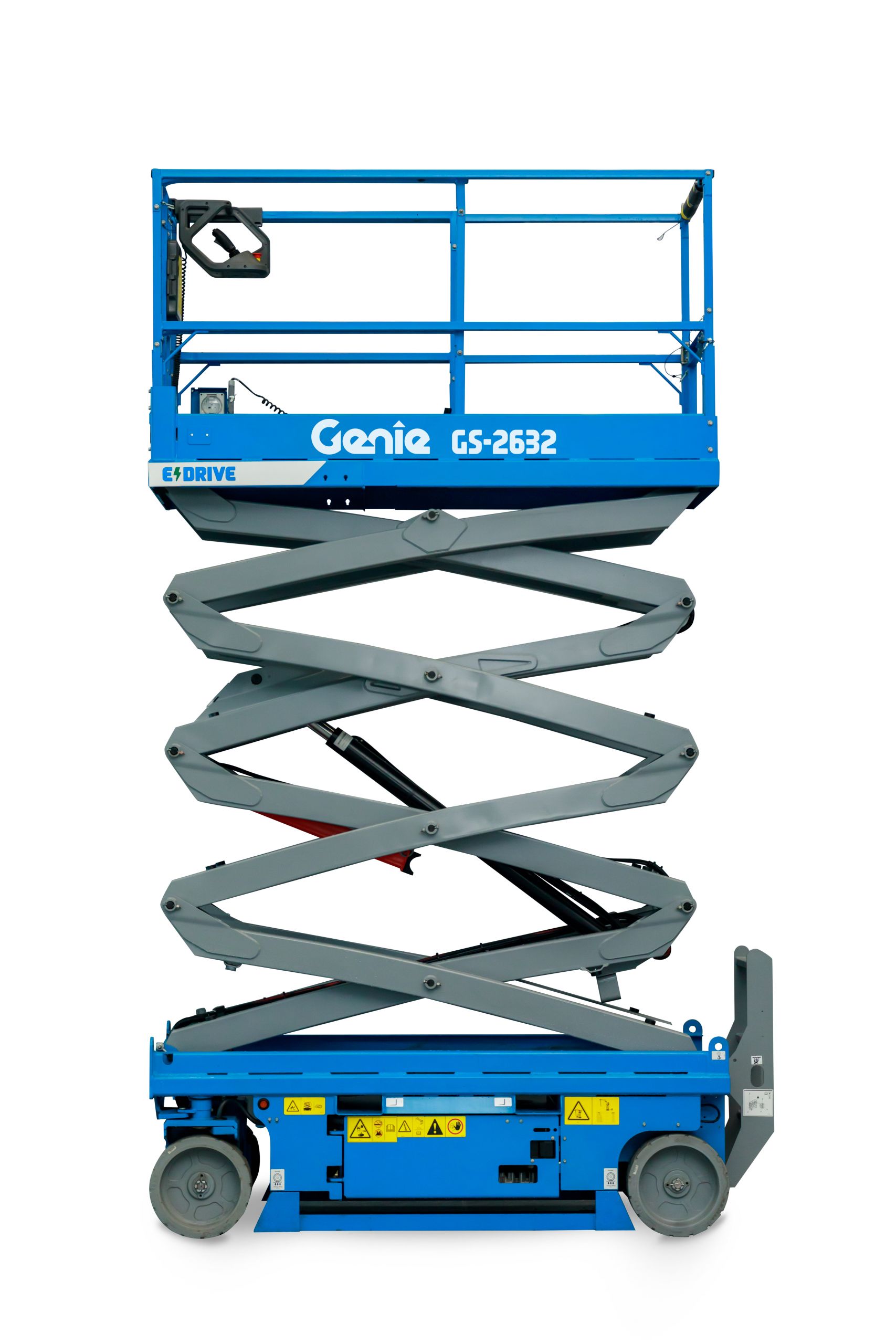

Genie GS-2632
Ideal for maneuvering in tight spaces, the quiet, zero emission electric Genie® GS™-2632 slab scissor lift is excellent for indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.
| Max Working Height | 32 ft 1 in |
| Capacity | 500 lb |
| Machine Width | 2 ft 8 in |
| Machine Length | 8 ft |
| Weight | 4,413 lb |
Genie GS-2646
Ideal for maneuvering in tight spaces, Genie slab scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.
| Max Working Height | 32 ft 1 in |
| Capacity | 1,000 lb |
| Machine Width | 3 ft 10 in |
| Machine Length | 8 ft |
| Weight | 4,312 lb |
Genie GS-3246
Boasting front-wheel drive and zero inside turning radius, the Genie® GS™-3246 slab scissor lift is excellent for indoor and outdoor construction, maintenance and installation applications on firm, level surfaces. It’s quiet, zero-emission electric operation is ideal for sound-sensitive environments.
| Max Working Height | 38 ft |
| Capacity | 700 lb |
| Machine Width | 3 ft 10 in |
| Machine Length | 8 ft |
| Weight | 5,211 lb |

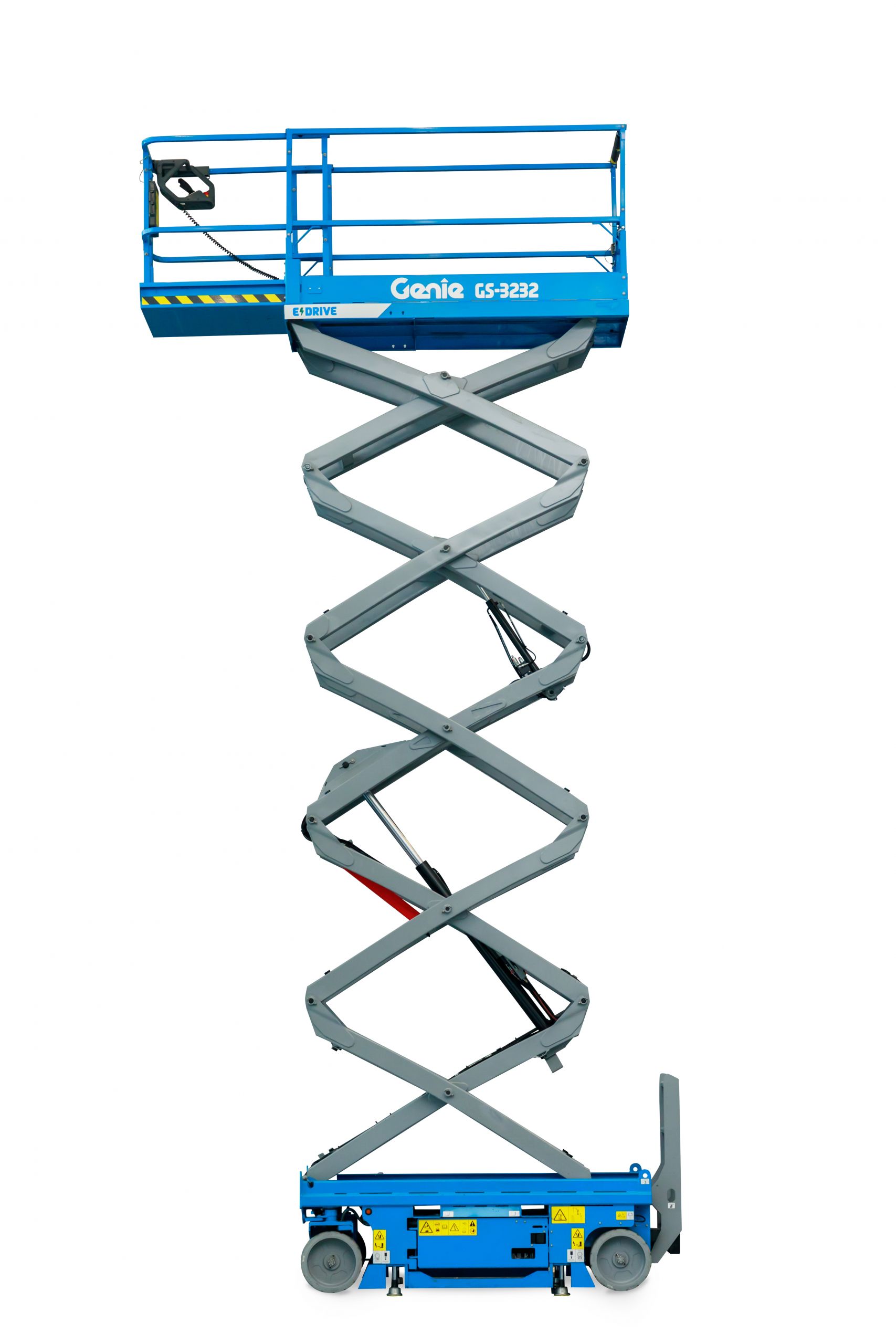

Genie GS-3232
The quiet, zero-emission Genie® GS™-3232 slab scissor lift is ideal for operation in sound-sensitive environments. With front-wheel drive and zero inside turning radius, it boasts excellent maneuverability in tight spaces. It is purpose-built to perform in indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.
| Max Working Height | 37 ft 8 in |
| Capacity | 500 lb |
| Machine Width | 2 ft 8 in |
| Machine Length | 8 ft |
| Weight | 5,185 lb |

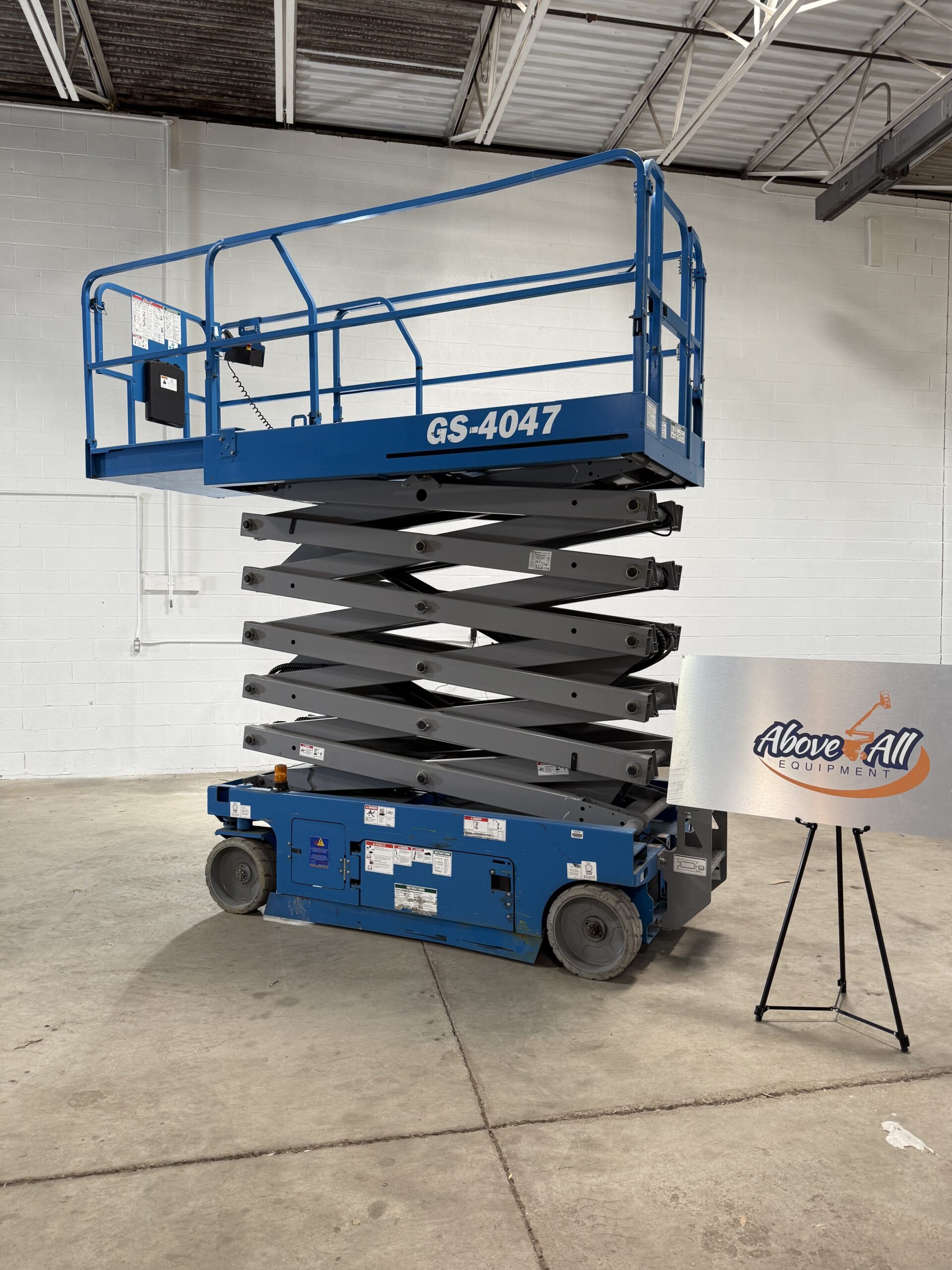

Genie GS-4047
Increase productivity in high rise spaces with the Genie® GS™-4047 slab scissor lift thanks to its ability to be driven at full height and designed for excellent maneuverability in tight spaces and narrow aisles.
| Max Working Height | 44 ft 11 in |
| Capacity | 550 lb |
| Machine Width | 3 ft 11 in |
| Machine Length | 8 ft 2 in |
| Weight | 7,185 lb |
By JLG
JLG 1930ES
Key Specs
- Platform Height: 18 ft 9 in. / 5.72 m
- Machine Width: 2 ft 6 in. / 0.76 m
Key Features
- Quieter, cleaner operation for a variety of environments
- Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
- Narrow width fits through most standard doorways and tight aisles
- Delivers 200% more battery life*
*Compared to a competitive model under similar test conditions. Actual results may vary.
JLG 2630ES

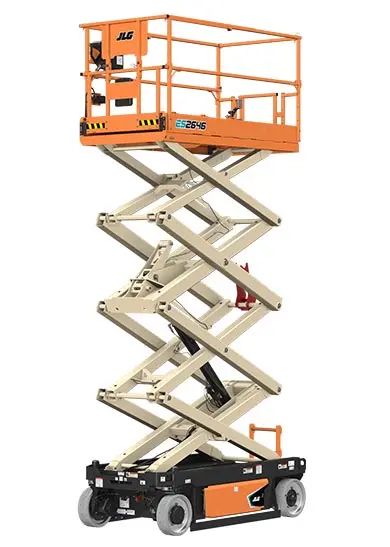

JLG 2646ES
Key Specs
- Platform Height: 26 ft / 7.92 m
- Machine Width: 3 ft 10 in. / 1.17 m
Key Features
- Quieter, cleaner operation for a variety of environments
- Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
- Tight turning radius for great maneuverability
- Delivers 200% more battery life*
*Compared to a competitive model under similar test conditions. Actual results may vary.
JLG 3246ES
Key Specs
- Platform Height: 31 ft 9 in. / 9.68 m
- Machine Width: 3 ft 10 in. / 1.17 m
Key Features
- Quieter, cleaner operation for a variety of environments
- Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
- Tight turning radius for great maneuverability
- Delivers 200% more battery life*
*Compared to a competitive model under similar test conditions. Actual results may vary.
By Skyjack
SKYJACK SJIII3215 / SJIII3219
Standard Features
- Drivable at full height
- Variable speed, front two wheel hydraulic drive
- 90° steering (zero inside turning radius)
- Dual holding brakes
- Proportional controls for drive & lift functions
- 3’ (0.91 m) Roll out extension deck
- 24V DC power source
- Low voltage battery protection
- 30% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC outlet on platform with GFI
- 28 mph wind rating (12.5 m/s)
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Forklift pockets and tie down/lift lugs
- Relay based control system
- Color coded and numbered wiring system
- Telematics ready
- DC Motor Controller
| SJIII 3215 | SJIII 3219 | |
| Work Height | 21’ (6.40 m) | 25’ (7.62 m) |
| Raised Platform Height | 15’ (4.57 m) | 19’ (5.79 m) |
| Lowered Platform Height | 34.5” (0.88 m) | 39” (0.99 m) |
| Overall Width | 32” (0.81 m) | 32” (0.81 m) |
| Overall Length | 70” (1.78 m) | 70” (1.78 m) |
| Stowed Height (Rails Up) | 74” (1.88 m) | 78.5” (1.99 m) |
| Stowed Height (Rails Down) | OPT 60.1” (1.53 m) | OPT 64.5” (1.64 m) |
| Platform Width (Inside Dimension) | 26” (0.66 m) | 26” (0.66 m) |
| Platform Length (Inside Dimension) | 64” (1.63 m) | 64” (1.63 m) |
| Weight | 2,400 lbs (1,089 kg) | 2,580 lbs (1,170 kg) |
| Capacity (Overall) | 600 lbs (272 kg) | 550 lbs (249 kg) |
SKYJACK SJIII3220 / SJIII3226
Standard Features
- Drivable at full height
- Variable speed, rear two wheel hydraulic drive
- Dual holding brakes
- Proportional controls for drive & lift functions
- 3’ (0.91 m) Roll out extension deck
- 24V DC power source
- Low voltage battery protection
- Up to 30% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC outlet on platform with GFI
- 28 mph wind rating (12.5 m/s)
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Hinged railing system (3226)
- Forklift pockets and tie down/lift lugs
- Relay based control system
- Color coded and numbered wiring system
- Telematics ready
- DC Motor Controller
| SJIII 3220 | SJIII 3226 | |
| Work Height | 26’ (7.92 m) | 32’ (9.75 m) |
| Raised Platform Height | 20’ (6.10 m) | 26’ (7.92 m) |
| Lowered Platform Height | 38” (0.97 m) | 45” (1.14 m) |
| Overall Width | 32” (0.81 m) | 32” (0.81 m) |
| Overall Length | 91.5” (2.32 m) | 91.5” (2.32 m) |
| Stowed Height (Rails Up) | 77.5” (1.97 m) | 84.7” (2.15 m) |
| Stowed Height (Rails Down) | OPT 63.5” (1.61 m) | 70.6” (1.79 m) |
| Platform Width (Inside Dimension) | 28” (0.71 m) | 28” (0.71 m) |
| Platform Length (Inside Dimension) | 84” (2.13 m) | 84” (2.13 m) |
| Weight | 3,510 lbs (1,592 kg) | 4,135 lbs (1,876 kg) |
| Capacity (Overall) | 900 lbs (408 kg) | 500 lbs (227 kg) |
SKYJACK SJIII4632
Standard Features
- Drivable at full height
- Variable speed, rear two wheel hydraulic drive
- Dual holding brakes
- Proportional controls for drive & lift functions
- 4’ (1.22 m) Roll out extension deck
- 24V DC power source
- Low voltage battery protection
- Up to 30% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC outlet on platform with GFI
- 28 mph wind rating (12.5 m/s)
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Hinged railing system
- Forklift pockets and tie down/lift lugs
- Relay based control system
- Color coded and numbered wiring system
- Telematics ready
- DC Motor Controller
| SJIII 4626 | SJIII 4632 | |
| Work Height | 32’ (9.75 m) | 38’ (11.58 m) |
| Raised Platform Height | 26’ (7.92 m) | 32’ (9.75 m) |
| Lowered Platform Height | 45” (1.14 m) | 48.5” (1.23 m) |
| Overall Width | 46” (1.17 m) | 46” (1.17 m) |
| Overall Length | 91” (2.31 m) | 91” (2.31 m) |
| Stowed Height (Rails Up) | 88” (2.24 m) | 88” (2.24 m) |
| Stowed Height (Rails Down) | 70.5” (1.79 m) |
74” (1.88 m)
|
| Platform Width (Inside Dimension) | 42” (1.07 m) | 42” (1.07 m) |
| Platform Length (Inside Dimension) | 84” (2.13 m) | 84” (2.13 m) |
| Weight | 4,700 lbs (2,132 kg) | 5,075 lbs (2,302 kg) |
| Capacity (Overall) | 1,000 lbs (454 kg) | 700 lbs (318 kg) |
SKYJACK SJIII 4740
Standard Features
- Drivable at full height
- Variable speed, front wheel hydraulic drive
- DC Motor controller
- Half height hinged gate
- Dual holding brakes
- Proportional controls for drive & lift functions
- 3’ (0.9 m) Roll out extension deck
- 24V DC power source
- Low voltage battery protection
- 25% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC outlet on platform with GFI
- 28 mph wind rating (12.5m/sec)
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Hinged railing system
- Forklift pockets and tie down/lift lugs
- Relay based control system
- Color coded and numbered wiring system
- Telematics ready
| SJIII 4740 | |
| Work Height | 45.5ʹ (13.8 m) |
| Raised Platform Height | 39.5ʹ (12.0 m) |
| Lowered Platform Height | 54″ (1.37 m) |
| Overall Width | 47″ (1.19 m) |
| Overall Length | 94.5″ (2.40 m) |
| Stowed Height (Rails Up) | 97.9″ (2.49 m) |
| Stowed Height (Rails Down) | 78.2” (1.99 m) |
| Platform Width (Inside Dimension) | 42″ (1.06 m) |
| Platform Length (Inside Dimension) | 86″ (2.19 m) |
| Weight | 7480 lbs (3393 kg) |
| Capacity (Overall) | 500 lbs (227 kg) |
